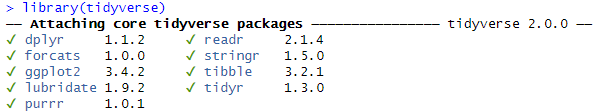

막대 그래프를 사용하기 위해 ggplot2를 설치해야 되겠지만 tidyverse 패키지안에 ggplot2가 포함되어 있으므로 그냥 tidyverse를 설치했다면 library(tidyverse)만 해도 되겠다. 설치되어 있지 않다면 다음과 같이 설치하면 된다.
install.packages("tidyverse") library(tidyverse) |
데이터 셋은 diamonds를 앞에서 이미 본 사용하도록 하겠다.
- carat: 다이아몬드 무게
- cut: 컷팅의 가치
- color: 다이아몬스 색상
- clarity: 깨끗한 정도
- depth: 깊이 비율, z / mean(x, y)
- table: 가장 넓은 부분의 너비 대비 다이아몬드 꼭대기의 너비
- price: 가격
- x: 길이
- y: 너비
- z: 깊이

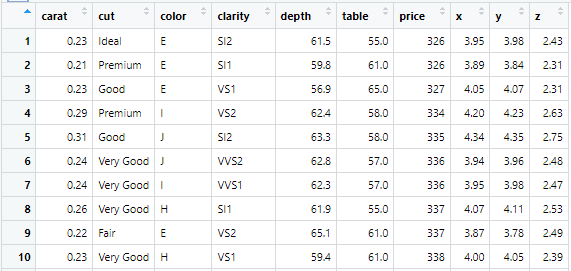

일부만 표시해보면 다음과 같다.
ggplot2의 가장 간단한 사용법은 data, aes, 그래프 종류이다.
ggplot(data=diamonds, aes(x=cut)) + geom_bar() #축이 하나일 때는 geom_bar()를 두개일 때는 geom_col()을 사용한다. |
데이터는 53,940건이다.
참고로, 축이 두개인 경우 geom_bar를 사용하려고 한다면 geom_bar(stat='identity')를 사용해야 한다.
geom_bar() 안에는 다양한 옵션을 포함시킬 수 있다. ?geom_bar로 확인해 보자.
가장 기본 그래프에 우리가 원하는 사항들을 추가해보자.
제일 먼저 다섯가지 종류의 커팅 가치에 대해 색상을 변경해 보자.

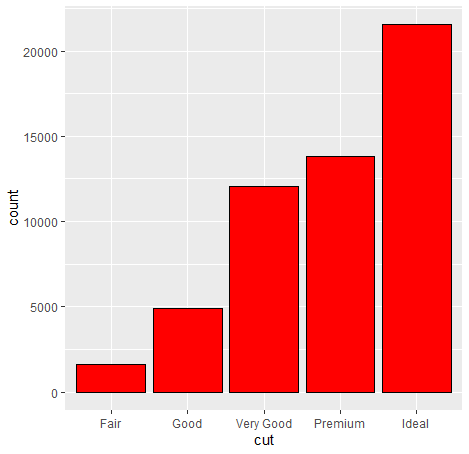

ggplot(data=diamonds, aes(x=cut)) + geom_bar(col = 'black', fill = 'red') |
geom_bar에서 fill을 사용할 수도 있고 aes에서 fill을 사용할 수 있는데 aes에서 사용하는 것이 훨씬 유연하다. geom_bar에서는 색깔을 직접 지정하지만 aes에서는 열의 값에 따라 자동으로 색이 지정될 수 있도록 할 수 있다.
ggplot(data=diamonds, aes(x=cut, fill=cut)) + geom_bar(col = 'black') |
각각의 막대마다 원하는 색상을 부여하기 위해서는 다음과 같이 scale_fill_manual(values =c("","",...))을 사용한다.
ggplot(data=diamonds, aes(x=cut, fill = cut)) + geom_bar(col = 'black') + scale_fill_manual(values = c("red", "blue", "green", "yellow", "purple")) |

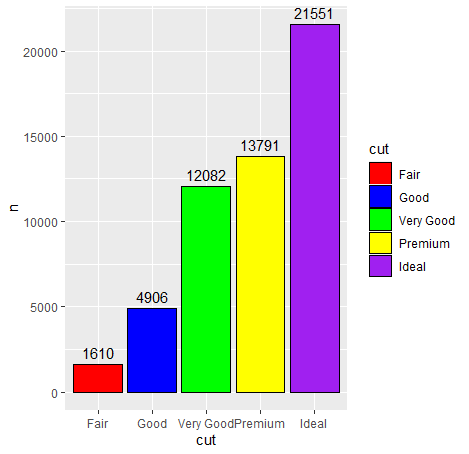

각 막대에 해당 값이 표시되도록 해보자.
diamonds %>% count(cut) %>% ggplot(aes(x=cut, y=n, fill=cut)) + geom_bar(stat = "identity", col = 'black') + scale_fill_manual(values = c("red", "blue", "green", "yellow", "purple")) + geom_text(aes(label = n), vjust = -0.5) #vjust가 포함되지 않으면 막대에 숫자가 겹친다. |
막대가 가로로 표시되도록 해보자.
diamonds %>% count(cut) %>% ggplot(aes(x=n, y=cut, fill=cut)) + geom_bar(stat="identity", col='black') + scale_fill_manual(values = c("red", "blue", "green", "yellow", "purple")) + geom_text(aes(label=n), hjust=-0.1) |
순서를 역순으로 바꿔보자.
diamonds %>% count(cut) %>% ggplot(aes(x=n, y=cut, fill=cut)) + geom_bar(stat="identity", col='black') + scale_fill_manual(values = c("red", "blue", "green", "yellow", "purple")) + geom_text(aes(label=n), hjust=-0.1) + scale_y_discrete(limits = rev(levels(diamonds$cut))) |

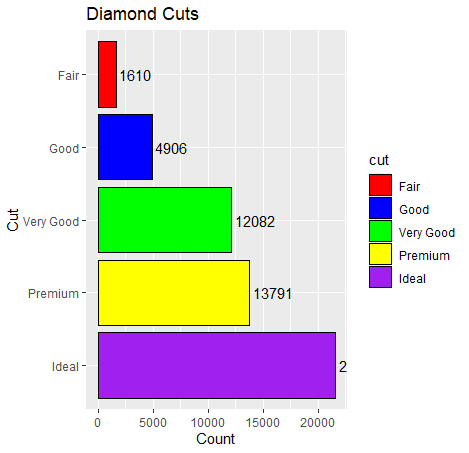

제목과 x축, y축 이름도 변경해 보자.
diamonds %>% count(cut) %>% ggplot(aes(x=n, y=cut, fill=cut)) + geom_bar(stat="identity", col='black') + scale_fill_manual(values = c("red", "blue", "green", "yellow", "purple")) + geom_text(aes(label=n), hjust=-0.1) + scale_y_discrete(limits = rev(levels(diamonds$cut))) + labs(title = "Diamond Cuts", x = "Count", y = "Cut") |
시간히 허락되면 ggplot 그래프 코드 작성을 자동으로 해주는 esquisse 패키지에 대해서 학습해보기 바란다.
패키지 설치하고 addins에서 'ggplot2' builder를 통해 사용
